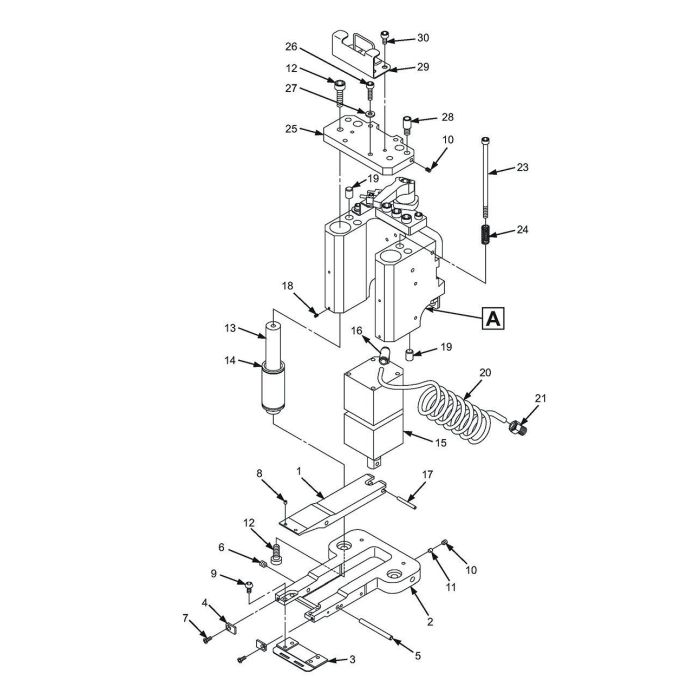

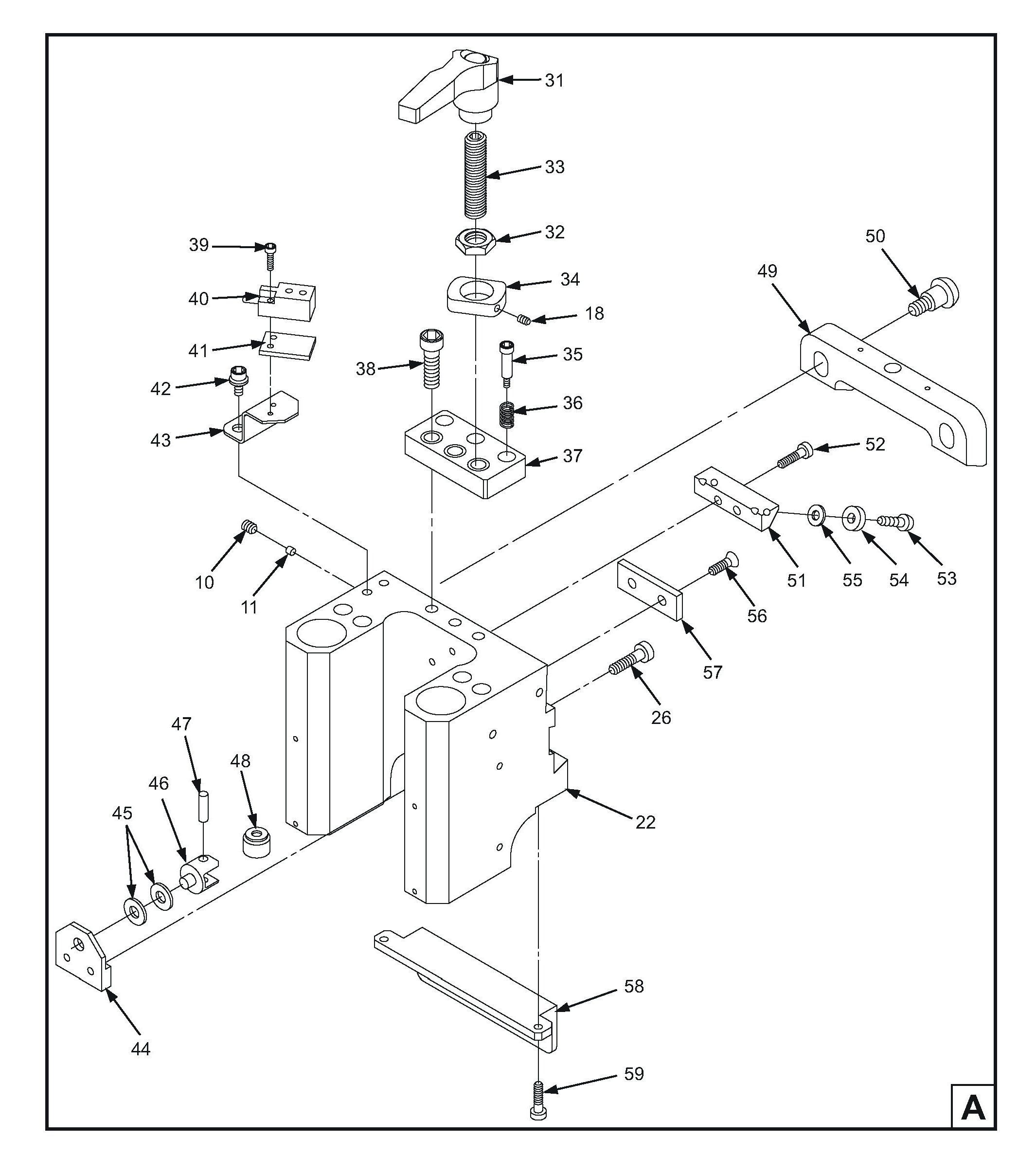

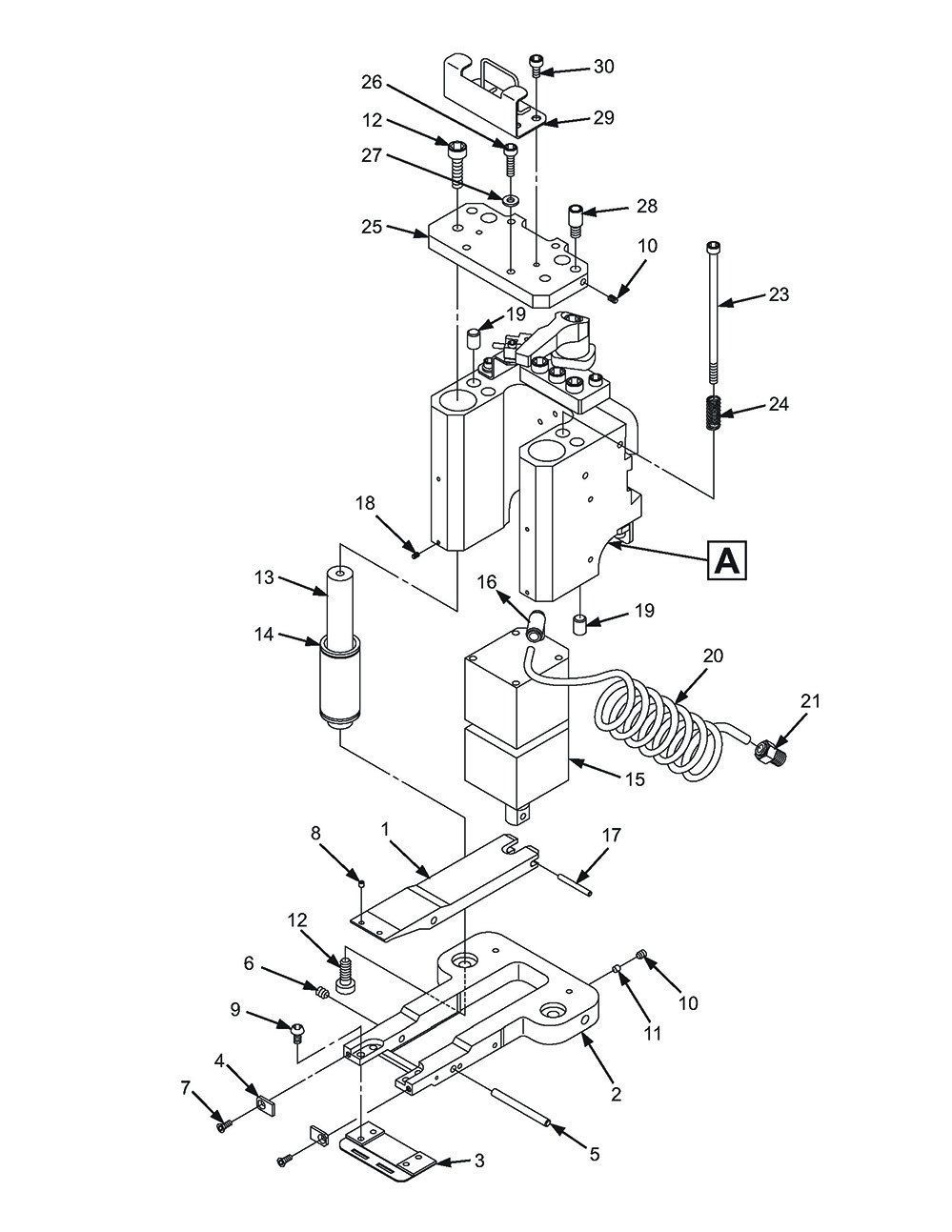

Replacement Parts for L Type Work Clamp Assembly (A0116-CA)

PART #

Replacement Parts for L Type Work Clamp (A0116-CA)

Replacement Parts for L Type Work Clamp Assembly (A0116-CA)

Order Replacement Parts

Illustration #

Part #

Product Description

Qty

A0116-CA

L Type Work Clamp Assembly

Amada # 6897209 / 74080519

Availability:

1 In stock

$1,999.00

A0213-CBA

AC / AE / LC - C1 Clamp Base Assembly

Amada # 74451832 / 6891263 / 6891295 / 6891296 / 74613748 / s420101

Availability:

13 In stock

$499.00

A0513-CP

Clamp Plate AC / AE / LC - C1

Amada # 74450264 / 6891296

Availability:

20+In stock

$79.00

A0794

Straight Pin M6 X 60

Amada # 74571118 / 826285

Availability:

20+In stock

$1.50

A0835

Set Screw M8 X 8 Each

Amada # 74722739 / p330590023

Availability:

20+In stock

$0.40

A0894

Flat Socket Head Cap Screw M4 X 10

Amada # 40011066 / Screw M4X 10

Availability:

20+In stock

$1.00

A0892

Cup Point Set Screw M5x6

Amada # 74199098 / m5x6 / Set screw cone

Availability:

20+In stock

$0.25

Out of Stock

A0822

M6 x 10 Button Head Screw

Amada # 43130517 / m6x10

Availability:

20+In stock

$0.25

A0889a

Set Screw M6 X 6 PKG of 10

Availability:

20+In stock

$3.00

A0947n

Insert

Amada # 74516819 / 806073

Availability:

20+In stock

$1.50

A0895

Bolt M8 X 25

Amada # 36147516 / screw SHCS M8x25

Availability:

20+In stock

$1.00

A0947a

Shaft

Availability:

20+In stock

$45.00

A0868

LM20LUU Bearing Bushing

Availability:

4 In stock

$49.00

A4332

Cylinder L Clamp Assembly

Amada # 74450261 / 7831646

Availability:

3 In stock

$395.00

A4153

Male Elbow

KQL06-01S Male Elbow

Tube Size: 6mm

1/8 inch PT

Availability:

16 In stock

$5.90

A0882

Pin-Pneumatic Piston

p337020028 / Pin for Pneumatic Piston

Availability:

20+In stock

$1.00

A0831e

Screw M4 X .7 x 6 Pkg of 10

Set Screw cup M4 X .7 x 6

Availability:

20+In stock

$1.90

A0947k

Cushion

Amada # 806009/ 74516908

Availability:

Out of stock

$2.00

A4123

Male Connector

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

Availability:

2 In stock

$6.90

A0947h

Main Body

Availability:

7 In stock

$499.00

A0947m

Socket Head Cap Screw M6 x 90

Amada # 74560514 / p330220024

Availability:

20+In stock

$1.00

A0877

Hanging Spring

Amada # 74390105 / 826218

Availability:

20+In stock

$5.00

A0947

Roof Plate

Amada # 6891268-a

Availability:

20+In stock

$115.00

A0834

Screw M6 X 25

Screw SHCS M6 X 25

Availability:

20+In stock

$0.30

A0947q

Lock washer M6

Amada # 74450271 / p336308004

Availability:

20+In stock

$0.30

A0947L

M10x20 Dog End Set Screw

Amada # 45421340 / p330570033

Availability:

20+In stock

$1.50

A0947w

Cable Bracket for A/E Clamp Assy

Amada # 74451852 / 6891273a

Availability:

20+In stock

$40.00

A0839k

Socket Cap Screw-M6 x 12 Pkg of 10

Socket Cap Screw-M6 x 12 PKG OF 10

Availability:

8 In stock

$2.90

A0813

Clamp Lever FKF12-SV

Amada # 74453971 / 7445257

Availability:

20+In stock

$29.00

A0813b

M12 Jam Nut

Availability:

10 In stock

$2.50

A0813c

M12 x 50 Set Screw

Availability:

20+In stock

$4.00

A0814

Dog EM Handle

Amada # 74575238 / 6826267

Availability:

20+In stock

$59.00

A0947s

Stripper Bolt 5.5x20

Amada # 71367461 / p338134069

Availability:

5 In stock

$3.00

A0947e

Spring WT8-20 (Small)

74450258 / P320065245

Availability:

8 In stock

$4.00

A0947d

Lever Block

Amada # 6891267

Availability:

7 In stock

$24.00

A0900

Screw SHCS M8 X30MM #3K583

Screw SHCS M8 X 30MM

Availability:

20+In stock

$1.00

A0947u

Shcs M3x16

Amada # 74354301 / p330200007

Availability:

20+In stock

$0.30

A6505

Clamp Position Switch

Amada # 31177273 / FL2R-4J6HD / 74419246

Availability:

20+In stock

$85.00

A0947v

Isolating Plate for A/E Clamp Assy

Amada # 74571342 / 6827529

Availability:

20+In stock

$29.00

A0947r

Flange Bolt M6x10

Amada # 75428708 / p330468015

Availability:

20+In stock

$1.00

A0947y

Sensor Bracket for A/E Clamp Assy

Amada # 74450268 / 6891286

Availability:

20+In stock

$15.00

A0947g

Push Plate

Amada # 74317827 / 6016672

Availability:

8 In stock

$55.00

A0947t

Disk Spring

Amada # 74318241 / p336155013

Availability:

20+In stock

$2.00

A0947j

AC/AE Retainer

Amada # 74317823 / 6016671A

Availability:

8 In stock

$39.00

A0947p

Dowel M5x20

Amada # 74718705 / p406017001

Availability:

20+In stock

$2.00

A9404

Roller Follower NART5UUR

Amada # 74379877 / 74573647

Availability:

10 In stock

$39.00

A0947c

Lock Plate

Amada # 6891272

Availability:

17 In stock

$45.00

A0947b

Pressure Pin

Amada # 6891271

Availability:

20+In stock

$19.00

A0947i

Roller Bracket

Amada # 74450272 / 6891285

Availability:

20+In stock

$29.00

A0839e

Socket Cap Screw-M5 x 25 Pkg of 10

Availability:

20+In stock

$2.90

A0839x

Screw Button M5 x 14

Amada # 79319750

Availability:

20+In stock

$0.33

A9403

Ball Bearing 625ZZ1MC3E

Amada # 74382417

Availability:

20+In stock

$15.00

A0839y

M5 Wave Washer

Amada # 31182981

Availability:

20+In stock

$0.33

A0827

Flat Head Cap Screw-M6 X 16 Pkg OF 10

Screw M6 X 16 Flat Head

Availability:

14 In stock

$3.00

A0947f

Plate

Amada # 6891283 / 74450270

Availability:

20+In stock

$39.00

A0802

EMLK Sensor Dog L50x50x6

Amada # 74812178 /3809552

Availability:

20+In stock

$69.00

A0838

M4 X .7 X 12 MM Pkg of 10

Screw M4 X .7 X 12MM Pkg of 10

Availability:

20+In stock

$3.00
