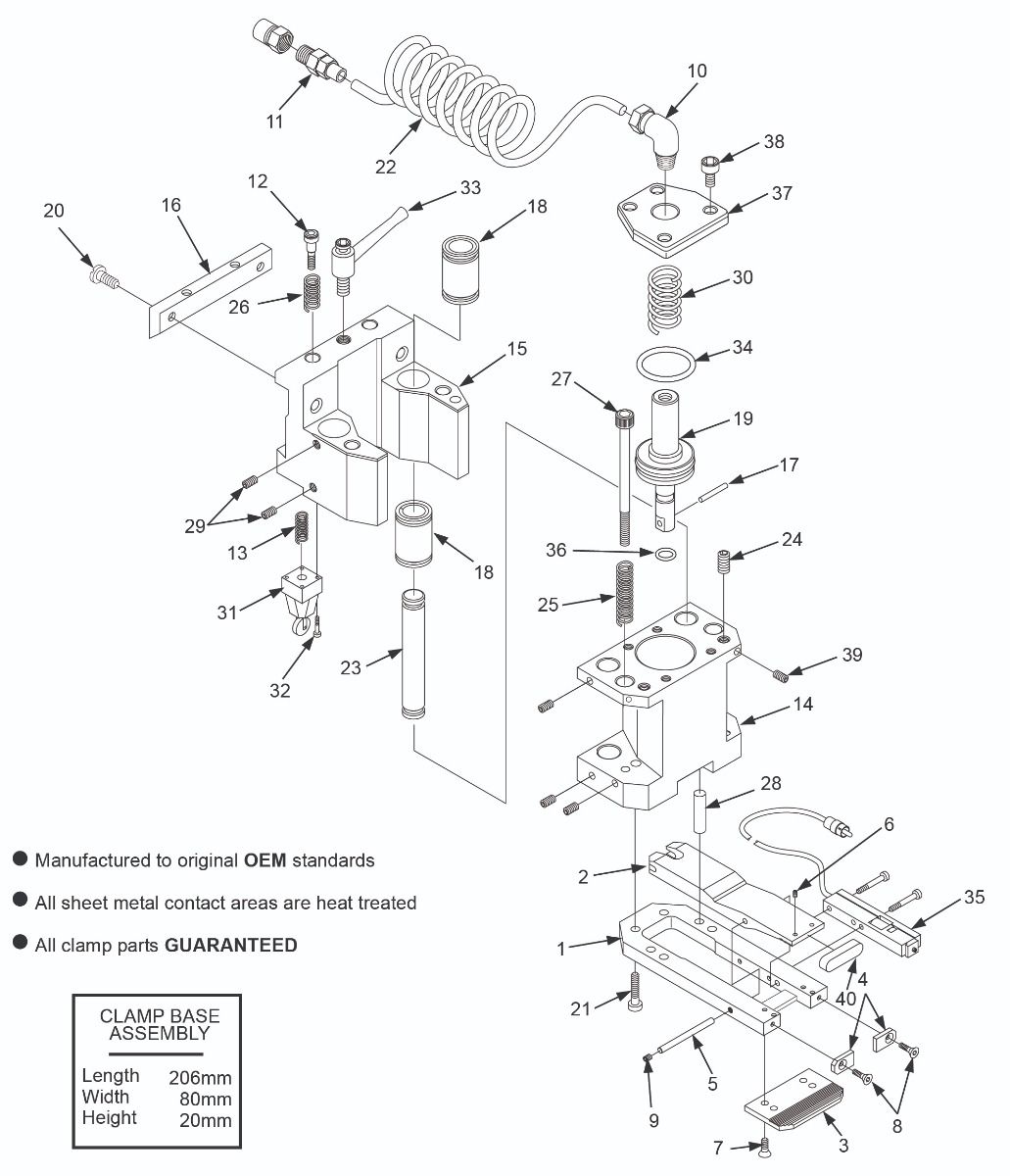

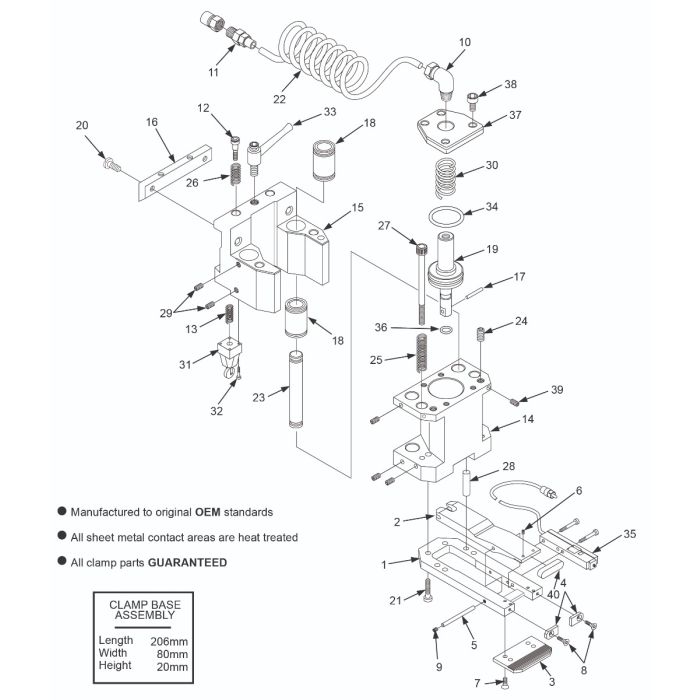

Replacement Parts For A0101-CA

Amada #'s 74161532 / 826180

Amada # 74161544 / 826189 / 75498402

Amada # 43136709 / 826189a / 75426619 / 6048243 / PN098

Amada # 74303518 / 826182a

Amada # 74161354 / 816025

Amada # 826235

Amada # 74161353 / 816026

Amada # 74571118 / 826285

Set Screw cup M5 X 6 Pkg of 10

Screw M5x12 Pkg 10 CP

Amada # 40011066 / m4x10 / Screw M4 x 10 Pkg of 10SP

Amada # 74722739 / p330590023

Amada # 74169983

KQL06-02S Male Elbow

Tube Size: 6mm

1/4 inch PT

KQH06-02S Male Connector

Tube Size: 6mm

1/4 inch PT

p337135015 / Shoulder Bolt M8 x 25

Spring

Amada # 74335816 / Body Piston Side Pneumatic New

Amada # 74335806 / 826181a

Amada # 74165903 / 816004

p337020028 / Pin for Pneumatic Piston

Linear Bearing ST16B

Amada # 74303513 / 826184b / Clamp Piston (Amada)

Amada # 74165904 / 816005

Amada # 36147516 / screw SHCS M8x25

Clamp Coil Tubing

Rod 16mm x 120mm

52332269 / P330570035

Amada # 74390105 / 826218

Amada # 74165905 / 816006

Amada # 90106100 / M6 X 100

Amada # 74377352

Set Screw M6 X 6 PKG of 10

Amada # 74161330 / 806005

6wph200-1 / Amada # 74163416

Soc Cap Bolt M4 X 20 PKG OF 10

kr12x20 / Clamp Lever Assembly - 12MM
Amada # 806075

O-Ring P-50A

Amada # 74161252 / 8635270D

O-Ring P-12

Amada # 74303522 / 826188

Socket Cap Screw-M6 x 12 PKG OF 10

Set Screw cup M4 X .7 x 6

Urethne Boot - For Clmper Tp 1

Amada # 74162521 / 20SM 1/4

Amada # 74162522 / 20pf-1/4/ 20ph-1/4

Amada # 74161342 / 806075 / 74161343 / 71368820

Shims .010 - Pkg of 10

Shims .003 - Pkg of 10

Shims .005 - Pkg of 10

Amada # 75426617 / 6048241

Amada # 74161389 / 6010227.28.29.30
